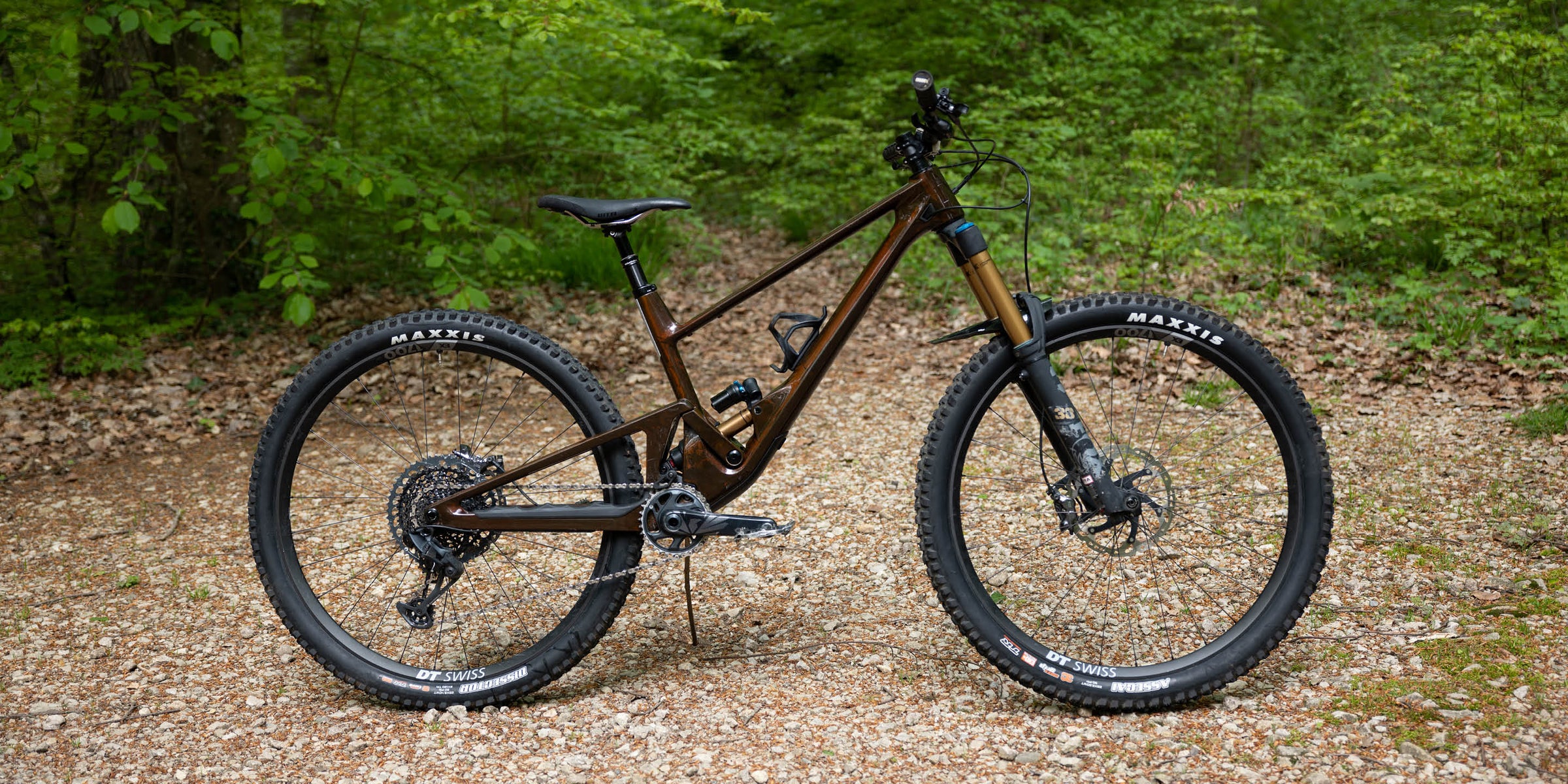

Fannie's Bike Setup

Verspielt, für jeden Spass zu haben, liebt steile, technische Lines, ist aber genauso gerne auf Flow-Trails unterwegs – das ist Fannie. Genau so ist auch das 4060 LT – und deshalb passen die beiden so gut zusammen.

Specifications

Frameset

Frame: SCOR 4060 full carbon frame "Root Beer" | Lower-Link Driven Instant Center Linkage | 160mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM Universal Derailleur Hanger | Lower ISCG 05 mount / Chainguide

Suspension

Front Suspension: Fox Float 38 Factory Series | 170mm travel | Grip2 damper | Low & high speed compression adjust | Low & high speed rebound adjust | 44mm rake

Rear Suspension: Fox Float X2 Factory Series | Low / high speed compression adjust | Low / high speed rebound adjust | 2 position adjust | Trunnion mount | Bearing mount

Cockpit

Handlebar: RENTHAL FATBAR | 31.8mm clamp | 760mm wide | 20mm rise

Stem: RENTHAL APEX | 31.8mm bar bore | 40mm length | 6° angle

Seatpost:  Bikeyoke Divine | 160mm travel | Triggy Alpha lever | Saddle: Fizik Terra Alpaca

Drivetrain

Gears: 1 x 12

Crankset: SRAM GX Eagle | 170mm length | 32T chainring | DUB interface

Cassette: SRAM GX Eagle (XG-1275) | 10-52T

Chain: SRAM GX Egale

Rear Derailleur: SRAM GX Egale Lunar

Shifters: SRAM GX Egale Trigger

Brakes

Brake Levers / Calipers: SHIMANO DEORE XT

Wheels

Rims/Hubs (F/R): DT Swiss EX 1700 Spline | 30mm internal width | Tubeless | DT Swiss 350 | Ratchet SL freehub | Straightpull spoke interface | Boost Spacing

Size: 29"

Tires: Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) | Compound: 3C Maxx Terra (F) / 3C Maxx Terra (R) | Casing: EXO (F) / EXO+ (R) | Tubeless ready

Extras

Tire Clearance: Width: 64mm Diameter: 750mm | ASTM Classification: Level 4 | Stash Box | SCOR 4060 X Slicy MySublimistick Frame Protector
